Lubricate Lift Cylinders and Rockshaft

RXA0141976-UN-02JUN14

RXA0141977-UN-20JUN14

Rockshaft Assembly

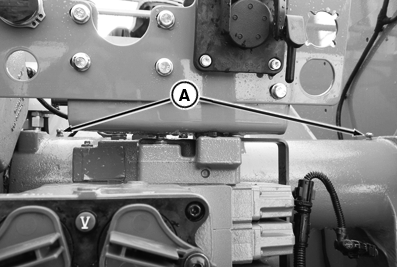

A - Rockshaft Lubrication Fittings

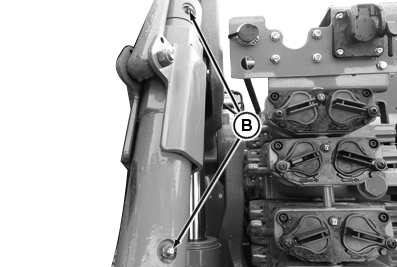

B - Lift Cylinder Pin Lubrication Fittings

Lubricate lift cylinder pin fittings (B) on both sides of tractor. Lubricate left-hand (A) and right-hand side rockshaft fittings. See Grease in Fuels, Lubricants, and Coolant section of this Operator’s Manual for correct grease to use.
