Check Weep Hole—9.0 L Engine

1.

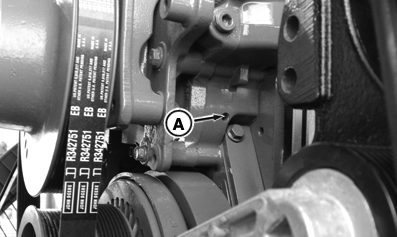

   RXA0142742-UN-19JUN14

   Coolant Pump Weep Hole

   A - Weep Hole

   Remove left-hand side shield.

---




2. Inspect weep hole (A) for oil or coolant leakage.

   • Oil leakage indicates a damaged rear seal.
   • Coolant leakage indicates a damaged front seal.



   If leakage is detected, see your John Deere™ dealer.

3. Replace left-hand side shield.
