Check Weep Hole—13.5 L Engine

  1. Raise hood.

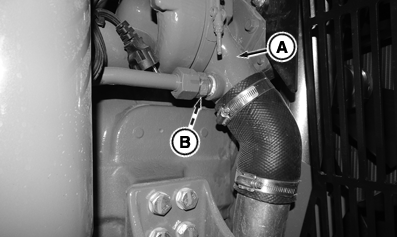

    RXA0142743
    RXA0142743-UN-19JUN14

    Water Pump

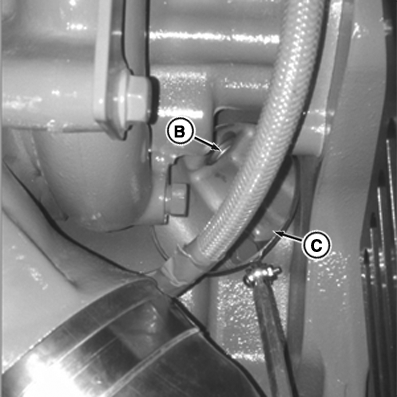

    RXA0142744
    RXA0142744-UN-19JUN14

    Weep Hole Location

    A - Water Pump

    B - Weep Hole

    C - Mirror


  2. Inspect weep hole (B) on under side of water pump (A) for oil or coolant leakage. Use mirror (C) to assist in locating weep hole.

    • Oil leakage indicates a damaged water pump seal.
    • Coolant leakage indicates a damaged front seal.

    If leakage is detected, see your John Deere™ dealer.

  3. Close hood.
