Load Center Fuses

NOTE: Seat backrest can be folded down to allow easier access to load center fuses for fuse replacement.

Load center is found directly behind the operator's seat and just below rear cab window. To access load center, lift Operator's Manual holder (A).

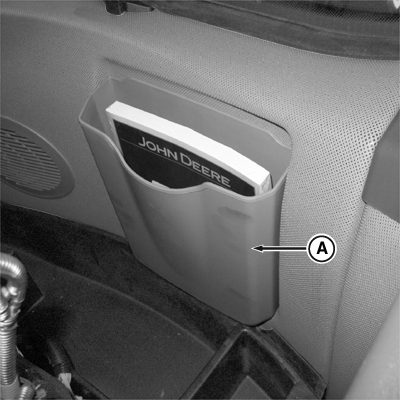

RXA0108495-UN-12JUL10

Operator's Manual Holder

A - Operator's Manual Holder

Diagram identifies load center fuse location, size and description.

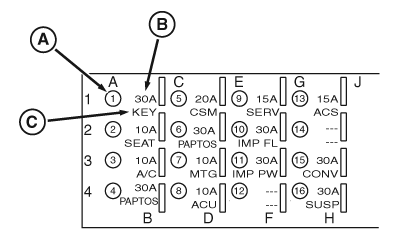

RXA0129611-UN-25JAN13

Load Center — Legend

A - Fuse Location Number

B - Fuse Size

C - Fuse Use/Description

IMPORTANT:

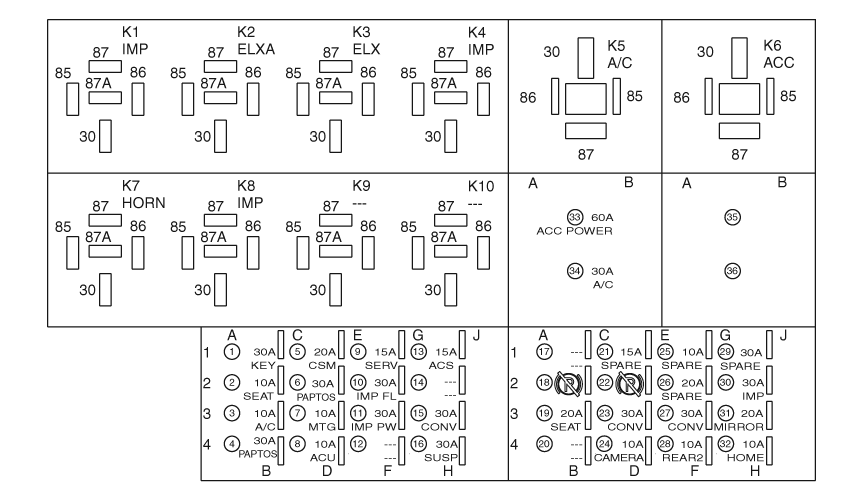

RXA0127389-UN-25JAN13

Relay and Fuse Locations

K1 - ISO Implement Connector Power Relay

K2 - Electronics Relay

K3 - Electronics Relay

K4 - Implement Accessory Relay

K5 - Blower Relay

K6 - Accessories Relay

K7 - Warning Horn Relay

K8 - Implement Flood Relay

K9 - Not Used

K10 - Not Used

1 - Key Switch (30 Amp)

2 - Operator Presence Switch (10 Amp)

3 - Air Conditioner (10 Amp)

4 - Not Used

5 - Radio, Primary Display and Interior Lights (20 Amp)

6 - Not Used

7 - Modular Telematics Gateway (10 Amp)

8 - Armrest Control Unit (10 Amp)

9 - Server (15 Amp)

10 - Implement Flood Lights (30 Amp)

11 - Implement Accessory (30 Amp)

12 - Not Used

13 - Steering Controller (15 Amp)

14 - Not Used

15 - Convenience Outlet Battery (30 Amp)

16 - Tracks Suspension (2 Tracks Only) (30 Amp)

17 - Not Used

18 - Park Brake Release

19 - Seat Controls (20 Amp)

20 - Not Used

21 - Spare (15 Amp)

22 - Park Brake Release

23 - Convenience Outlet Switched (30 Amp)

24 - Video Camera Power and Armrest Outlet (10 Amp)

25 - Spare (10 Amp)

26 - Spare (20 Amp)

27 - Convenience Outlet Switched (30 Amp)

28 - Rear Chassis Control Unit (10 Amp)

29 - Spare (30 Amp)

30 - ISO Implement Connector (30 Amp)

31 - Remote Mirror (20 Amp)

32 - Come Home Mode (10 Amp)

33 - Accessories Power (60 Amp)

34 - Blower Motor (30 Amp)

35 - Not Used

36 - Not Used

Load center is located in battery compartment. Open battery compartment cover.
Tractor Load Center for 13.5 L (9470RX, 9520RX or 9570RX) Engines

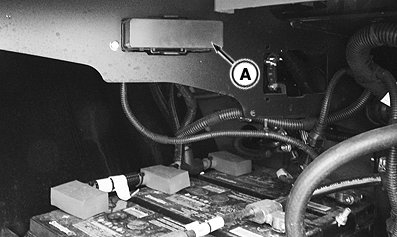

RXA0142041-UN-04JUN14

Load Center Cover

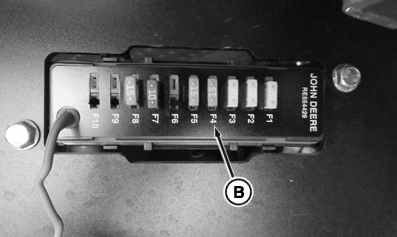

RXA0142042-UN-04JUN14

Load Center Panel

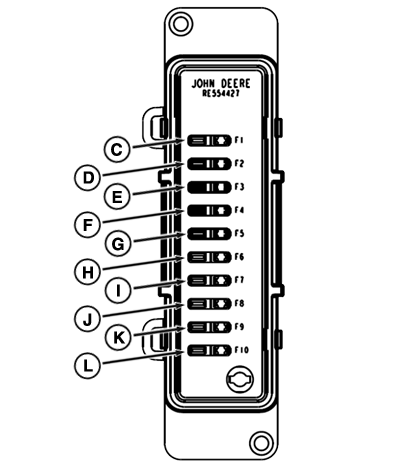

RXA0130342-UN-11JAN13

Fuses

A - Load Center Cover

B - Load Center Fuse Panel

C - F1 - ECU (20 Amp) (Not Used For Stage II)

D - F2 - ECU (20 Amp)

E - F3 - ECU (20 Amp)

F - F4 - Dosing Pump (15 Amp) (Not Used For Stage II)

G - F5 - Fuel Transfer Pump (15 Amp) (Not Used For Stage II)

H - F6 - Not Used

I - F7 - Key Switch (10 Amp)

J - F8 - ActiveCommand Steering (ACS)™ Control Unit (If ACS™ Equipped) or AutoTrac™ Control Unit (If AutoTrac™ Equipped) (15 Amp)

K - F9 - Front Chassis Control Unit 2 (25 Amp)

L - F10 - Front Chassis Control Unit 1 (HydraCushion™ Suspension-If Equipped) (10 Amp)

IMPORTANT: Replacement fuse must be same rating as original. Ensure key is in OFF position before removing or replacing fuses.

Tractor Load Center for 15 L Engine

RXA0142041-UN-04JUN14

Load Center Cover

RXA0142042-UN-04JUN14

Load Center Panel

RXA0130342-UN-11JAN13

Fuses

A - Cover

B - Load Center Panel

C - F1 - ECU (20 Amp)

D - F2 - Not Used

E - F3 - DEF Heaters (20 Amp)

F - F4 - After Treatment

G - F5 - DEF Supply Pump (15 Amp)

H - F6 - A/C Commpressor

I - F7 - Key Switch (10 Amp)

J - F8 - Steering System, AutoTrac Control Unit (If Equipped with AutoTrac) (10 Amp)

K - F9 - Not Used

L - F10 - Not Used

IMPORTANT: Replacement fuse must be same rating as original. Ensure key is in OFF position before removing or replacing fuses.

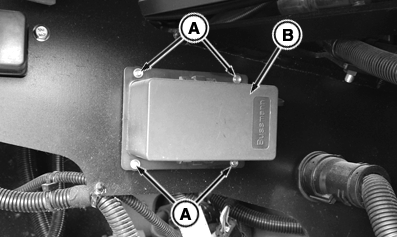

RXA0142548-UN-17JUN14

KEXX Cover

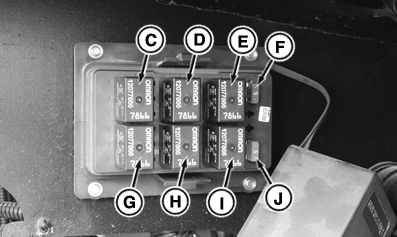

RXA0142549-UN-16JUN14

KEXX Fuses and Relays

A - Cap Screws (4 used)

B - Cover

C - A/C Compressor Clutch Relay

D - Line Heater Relay (PRESSURE)

E - Aftertreatment Relay

F - Alternator

G - DEF Supply Relay

H - Line Heater Relay (RETURN)

I - Line Heater Relay (SUCTION)

J - ECU
