Replace Implement Power Relay Module Fuses

RXA0142135
RXA0142135-UN-05JUN14

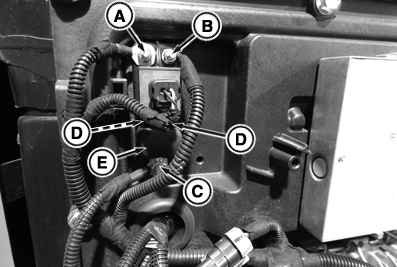

Implement Power Relay Module

RXA0142136
RXA0142136-UN-05JUN14

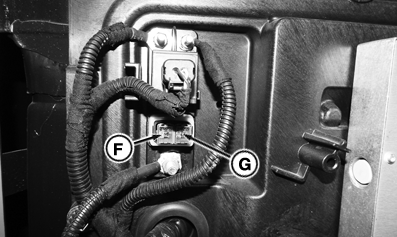

Remove Cover To Access Implement Power Relay Module

A - Switched Power Lug

B - Unswitched Power Lug

C - Input Stud

D - Fuse Cover Tabs

E - Fuse Cover

F - 60 Amp Fuse

G - 30 Amp Fuse

IMPORTANT: Replacement fuse must be same rating as original.

Remove cab back panel. In upper left-hand corner is a relay module to route power to implement CAN Bus Breakaway Connector.

Top left-hand module stud is switched power lug (A) protected by a 60 amp fuse (F). Top right-hand module stud is unswitched power lug (B) protected by a 30 amp fuse (G).

Bottom center is the battery power input stud (C).

To Change Fuses

  1. Press down on fuse cover tabs (D) and remove fuse cover (E).

  2. To remove, pull fuse straight back.

  3. Insert new fuse.

  4. Replace cover and slide tabs over cover edge to hold in place.

TO84419,00001DA-19-20150116
