Overall Dimensions

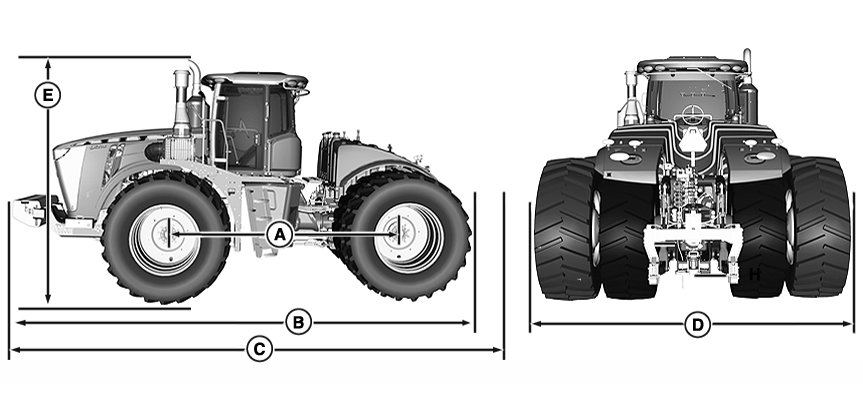

RXA0153371-UN-22AUG16

	9370R1	9420R1	9470R1	9520R2	9570R2	9620R2
LENGTH:
Wheelbase (A)	3807 mm (149.9 in.)			3912 mm (154 in.)
Overall Length (with front weights ) (excluding hitch and coupler) (B)	7593 mm (298.9 in.)			7697 mm (303 in.)
Overall Length (with front weights) (including hitch and coupler) (C)	8311 mm (327.2 in.)			8416 mm (331.3 in.)
OVERALL WIDTH:
Axle Length	3048 mm (120 in.)
Axle Diameter (std.)	110 mm (4.3 in.)		120 mm (4.7 in.)
Axle Diameter (opt.)	120 mm (4.7 in.)		N/A
Overall Width (with outside duals) (D)	4900 mm (192.9 in.)
HEIGHT FROM GROUND:
Top of Exhaust (E)	3666 mm (144.3 in.)	3979 mm (156.6 in.)			4135 mm (162.8 in.)
TURNING RADIUS:
Group 48 Tires	5547 mm (18.2 ft.)			6035 mm (19.8 ft.)
GROUND CLEARANCE:
Drawbar3	355.6 mm (14 in.)			419.1 mm (16.5 in.)
Estimated Shipping Weight45	17,780 kg (39,200 lbs)	18,810 kg (41,470 lbs)	19,190 kg (42,310 lbs)	19,750 kg (43,550 lbs)	19,690 kg (43,420 lbs)
Estimated Shipping Weight46	17,370 kg (38,290 lbs)	18,250 kg (40,240 lbs)	18,635 kg (41,080 lbs)	19,200 kg (42,320 lbs)		Not Available
Maximum Ballast Level	22,105 kg (48,700 lbs)	22,105 kg (48,700 lbs)	24,721 kg (54,500 lbs)	27,216 kg (60,000 lbs)
