Install GreenStar™ System Components

IMPORTANT: This vehicle employs one or more CAN bus networks. Connecting unapproved devices to vehicle network (s) may cause machine to degrade in performance or fail to perform properly. Further, unapproved devices that attempt control of tractor functions should not be connected to implement network (ISOBUS).

RXA0104665-UN-10SEP09

Attach Bracket to Corner Post Mount

RXA0153452-UN-19AUG16

Connect StarFire™ Receiver

A - Corner Post Mounts

B - Wing Nuts (2 Used)

C - GreenStar™ Corner Post Connector

D - GreenStar™ Display Connector

E - StarFire™ Receiver Connector

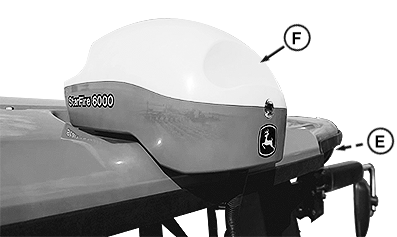

F - StarFire™ Receiver

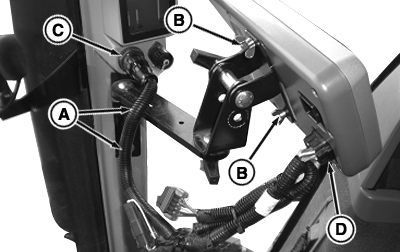

1. Attach bracket to corner post mounts (A).

2. Attach display to bracket using wing nuts (B) (provided with display).

3. Attach harness to corner post connector (C) and lower GreenStar™ display connector (D) on back of display.

4. Position display so it is comfortable to reach and does not obstruct operator view.

5. Connect StarFire™ receiver connector (E) to StarFire™ receiver (F).

   NOTE: See your John Deere™ dealer for compatible adapter harnesses.
