Monitor Bracket Mounts

RXA0147009-UN-10MAR15

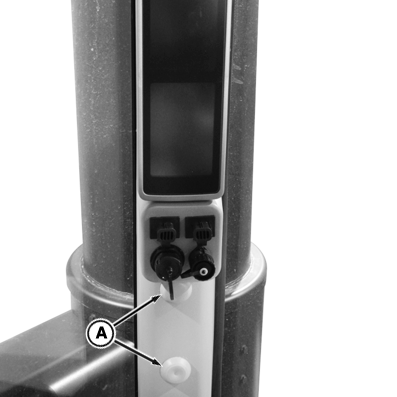

Front Corner Post Mounting Points

RXA0147010-UN-10MAR15

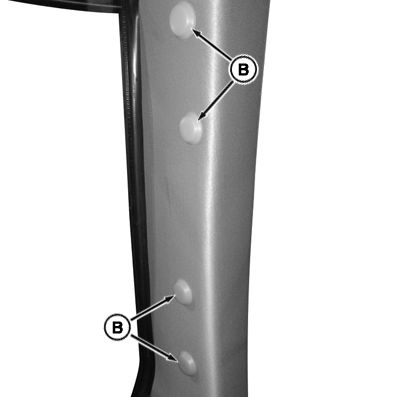

Rear Corner Post Mounting Points

A - Front Corner Post Mounting Points

B - Rear Corner Post Mounting Points

Front corner post mounting points (A) and rear corner post mounting points (B) are used to connect implement monitors to cab using M10 cap screws. See your John Deere™ dealer for brackets that utilize these mounting points.
