Use Electric Mirror

RXA0143014-UN-08JUL14

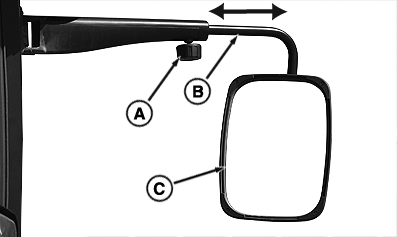

Electric Rear-View Mirror (Right-Hand Side Shown)

RXA0142296-UN-08JUL14

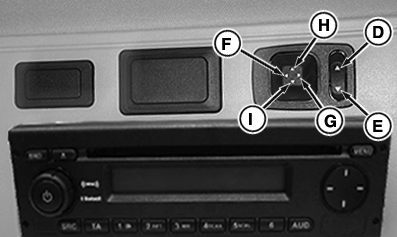

Electric Rear-View Mirror Switches

A - Mirror Arm Adjustment Knob

B - Mirror Arm

C - Electric Rear-View Mirror

D - Selection Switch—Right Mirror

E - Selection Switch—Left Mirror

F - Angle Left

G - Angle Right

H - Tilt Up

I - Tilt Down

1. Loosen mirror arm adjustment knob (A).

2. Slide mirror arm (B) to desired position.

3. Tighten mirror arm adjustment knob.

4. Select right (D) or left (E) mirror.

5. Push adjustment switch to angle mirror (C) left (F) or right (G).

6. Push adjustment switch to tilt mirror up (H) or down (I).
