Parked Exhaust Filter Cleaning—Final Tier 4 and Stage IV Engines

RXA0133711-UN-16JUL13

Engine Shortcut Button on Navigation Bar

RXA0153799-UN-02SEP16

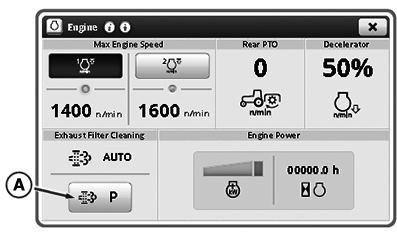

Engine Page

RXA0141402-UN-02MAY14

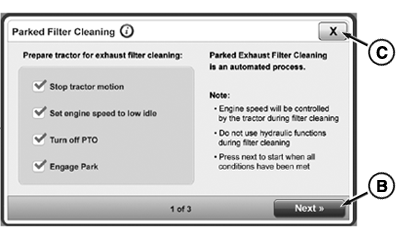

Parked Exhaust Filter Cleaning Conditions

A - Parked Exhaust Filter Cleaning Button

B - Next Button

C - Close Window Button

Parked exhaust filter cleaning is automated to allow system to clean exhaust filter when required. During process engine speed is controlled by system and machine must remain parked to complete procedure. Time required for parked exhaust filter cleaning procedure is dependent upon level of exhaust filter restriction, ambient temperatures, and current exhaust gas temperature. CommandCenter™ prompts provide estimated time for completion.

NOTE: Tractors equipped with 15 L engines will automatically perform an initial exhaust filter cleaning after a few hours of operation. This procedure may have occurred prior to tractor delivery. If procedure begins, allow full completion of process.

Follow path to perform Parked Exhaust Filter Cleaning:

1. Press Engine Shortcut Button on Navigation Bar.
2. Select Parked Exhaust Filter Cleaning button (A).
3. Conditions for Parked Exhaust Filter Cleaning to occur are as follows:
   • Stop tractor motion
   • Set engine speed to low idle
   • Turn off PTO
   • Engage PARK

   If any of these conditions are not met, procedure will not occur.

4. Select Next button (B) once conditions are met. NOTE: During parked exhaust filter cleaning operation, engine may operate at elevated idle.

   Engine speed will be controlled by machine during filter cleaning.


   NOTE: At any time during parked procedure, process can be canceled by advancing throttle, engaging transmission, selecting cancel button or stopping engine.

5. Status page appears when procedure starts.

   Parked exhaust filter cleaning has two steps: preparation and cleaning. During preparation, parked exhaust filter system controls engine speed to increase exhaust temperature. During cleaning, diesel particulates or soot are cleaned from exhaust filter system. Parked exhaust filter cleaning may exceed 40 minutes.

6. Once parked exhaust filter cleaning is complete, select close window button (C) to return to previously opened screen.
