Activate and Set Maximum Set Speed

RXA0133711-UN-16JUL13

Engine Shortcut Button on Navigation Bar

RXA0153804-UN-02SEP16

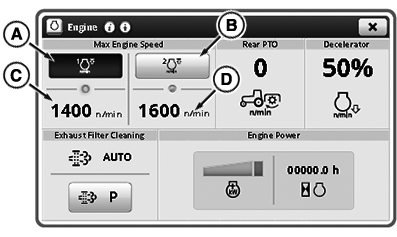

Engine Page

RXA0139472-UN-24FEB14

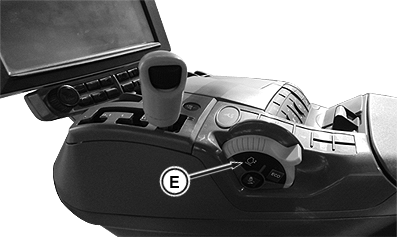

Maximum Set Speed ON/OFF Button on CommandARM™

RXA0153766-UN-02SEP16

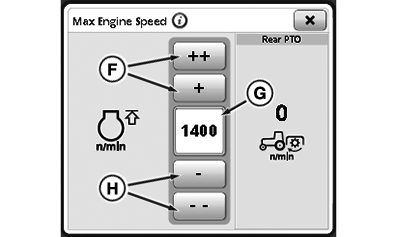

Maximum Set Speed Set Speed 1 Page

A - Maximum Set Speed 1 On/Off Toggle Button

B - Maximum Set Speed 2 On/Off Toggle Button

C - Maximum Set Speed 1 Input Module

D - Maximum Set Speed 2 Input Module

E - Maximum Set Speed ON/OFF Button

F - Maximum Set Speed Increase Button

G - Maximum Set Speed Input Box

H - Maximum Set Speed Decrease Button

Limiting engine speed in light load situations may improve fuel economy. Maximum Set Speed utilizes a constant speed governor curve, providing instant response to varying loads. Two different Maximum Set Speed speeds can be set, enabling operator to toggle quickly from one to the other.

Activate Maximum Set Speed

Engine must be running for Maximum Set Speed adjustment to operate.

1. Select Engine Shortcut Button on Navigation Bar

2. When engine page appears, select Maximum Set Speed 1 (A) or 2 (B) On/Off toggle button.

NOTE: Maximum Set Speed can also be activated using Maximum Set Speed ON/OFF button (E) on CommandARM™. When CommandARM™ Maximum Set Speed ON/OFF button is pressed, last Maximum Set Speed mode selected with CommandCenter™ will be activated.

Adjust Maximum Set Speed Set Speed

Maximum Set Speed is an upper limit to engine speed. Engine speed limit can be adjusted from 1100 to 2150 RPM. Changes to Maximum Set Speed take place immediately.

1. Select Maximum Set Speed 1 (C) or 2 (D) input module.

2. When Maximum Set Speed 1 or 2 page appears, select desired speed by using Maximum Set Speed increase (F) or decrease (H) button. “++” and “- -” buttons increase or decrease values at higher rate than “+” and “-” buttons. Maximum Set Speed value appears in Maximum Set Speed input box (G).
