Optional Fuel/Water Separator

  1. Shut off engine.

  2. RXA0148448
    RXA0148448-UN-19JUN15

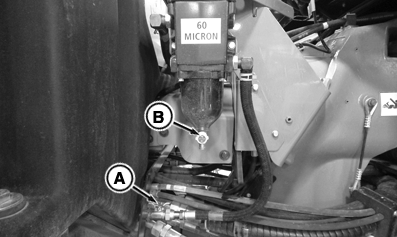

    Close fuel shut-off valve (A).


  3. Open drain valve (B) to release any water from fuel water separator.

  4. Close drain valve and reopen fuel shut-off valve.

BH38674,0000008-19-20170726
