Brake Warning Indicators

Brake warning indicators illuminate when a fault in the brake system occurs.

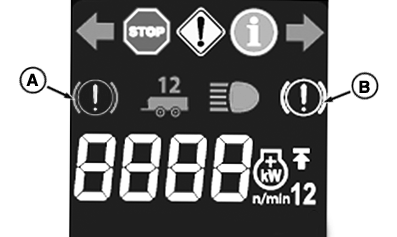

RXA0155981-UN-30NOV16

Brake Warning Indicator (Red) illuminates while trailer air brakes reach operating pressure, indicator will turn off once operating pressure is reached.

If indicator is solid red, a serious fault has been detected that affects brake system performance:

• Immediately stop tractor.
• Park tractor on level ground and prevent tractor from rolling away.
• Diagnostic Trouble Code (DTC) will display on CommandCenter™, follow instructions to fix the fault.
• If fault cannot be fixed, see your John Deere dealer.

If indicator is flashing red, park lock cannot engage:

• Park tractor on level ground and prevent tractor from rolling away.
• DTC will display on CommandCenter™, follow instructions to fix the fault.
• If fault cannot be fixed, see your John Deere dealer.

Brake Warning Indicator (Yellow) (B)

Yellow indicates an electrical fault has been detected that affects the ability to detect additional faults:

• Park tractor on level ground and prevent tractor from rolling away.
• DTC will display on CommandCenter™, follow instructions to fix the fault.
• If fault cannot be fixed, see your John Deere dealer.
