Drawbar Load Limits

RXA0141870
RXA0141870-UN-30MAY14

Avoid equipment damage. Never exceed maximum static vertical load on drawbar (D). Drive slowly when moving heavy draft loads.

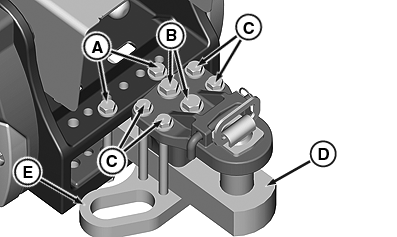

  1. Attach drawbar brace (E) and hammerstrap to drawbar (D).

  2. Insert M20 (A and C) and M22 (B) cap screws and tighten to specification.
    Torque
    Cap Screws, M20 610 N·m (450 lb·ft)
    Cap Screws, M22 750 N·m (553 lb·ft)

Drawbar Type

Drawbar Load Limits - Maximum Static Vertical Load

kg (lb)

Model

9420RX

9470RX

9520RX

9570RX

9620RX

Category 5

With heavy-duty drawbar support

Standard — 5440(12000)1

With heavy-duty drawbar support and category 4 conversion kit

Optional — 5440(12000)2

—

1 Maximum static vertical load with drawbar in short position.
2 Maximum static vertical load with drawbar in short position.
