Quik-Tatch™ Weight Use

RXA0152658-UN-07SEP16

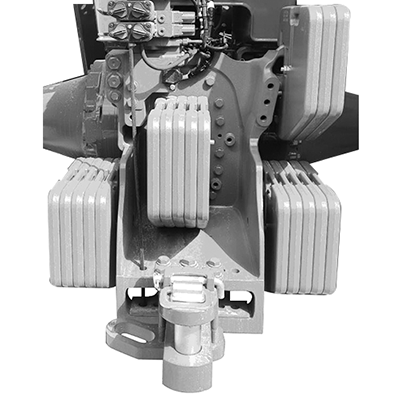

Maximum Ballast Configuration Without PTO and Hitch

RXA0153814-UN-07SEP16

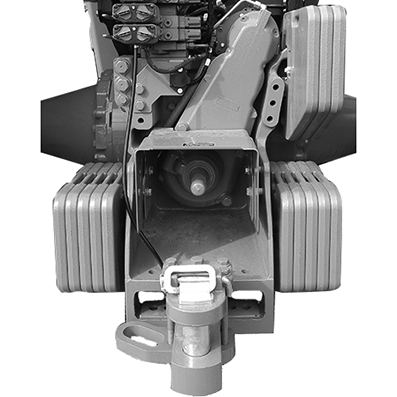

Maximum Ballast Configuration With PTO

Additional ballast not allowed if tractor equipped with hitch, or hitch and PTO.

Do not operate tractor at weight exceeding maximum ballasted weight of 28122 kg (62000 lb). Warranty may be voided due to “overload” conditions. Reduce load if unable to obtain correct ballast without exceeding maximum ballasted weight.

Equipment configuration determines maximum quantity of Quik-Tatch™ weights. A maximum of 18 43 kg (95 lb) Quik-Tatch™ weights can be added to rear of tractor as long as maximum ballasted weight does not exceed 28122 kg (62000 lb).

Equipment Configuration		Allowable Quik-Tatch™ Weights1
Without PTO and Hitch		18
With	PTO	13
	Hitch	0
	Hitch and PTO

Install Quik-Tatch™ Weights

To install 5 or fewer weights:

1. Position weight on bracket.

2. Install retaining bolts through hole.

3. Tighten nut to 230 N·m (170 lb·ft).
