Jack Up Tractor - Lifting Points and Support Stand Placement

Use approved lifting equipment only.

Install DFRW254-Gudgeon Oscillation Stop-Axle to prevent oscillation during axle removal. Failure to do so may result in injury. DFRW254 is shown on the following page.

Jack up tractor on firm, level ground only.

Before working on tractor, secure it using suitable support stands. Support stands are available from your John Deere dealer.

Never lift tractor using final drive housings. Housings will not support tractor weight.

Illustrations show recommended lifting points for jacking up tractor. Use appropriate and suitable lifting device.

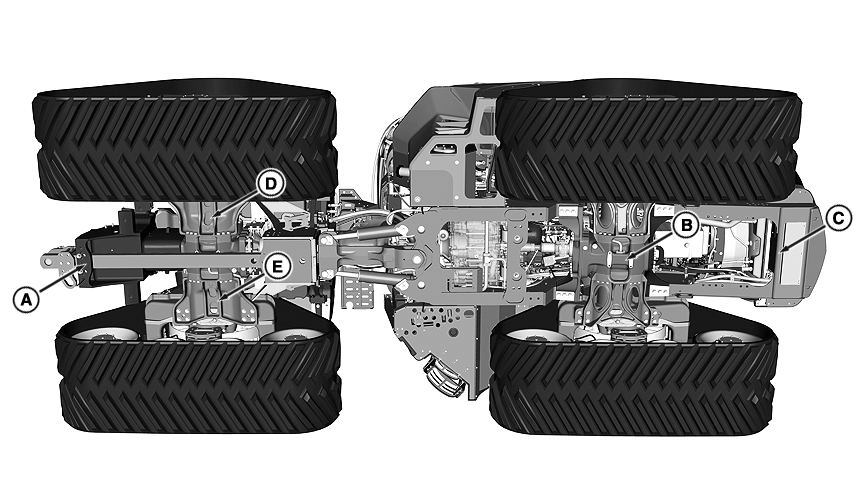

RXA0146323-UN-18NOV14

Underside, Lifting Points

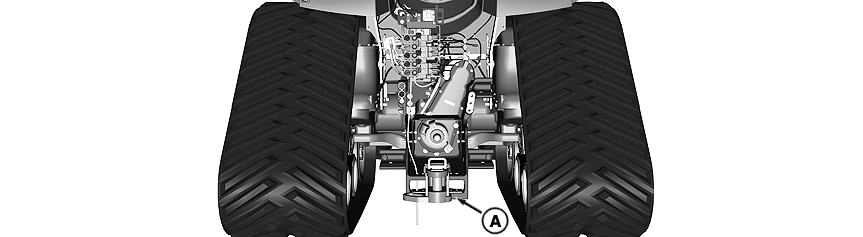

RXA0146324-UN-07NOV14

Rear Drawbar

A- Raise Rear of Tractor, e.g. to Remove Rear Track.	B- Raise Center of Front Differential Housing.	C- Raise Front End of Tractor.	D- Raise Right End of Rear Axle, e.g. to Remove Right Rear Track.
E- Raise Left End of Rear Axle, e.g. to Remove Left Rear Track.

RXA0148450-UN-22JUN15

JT07211 Support Stand

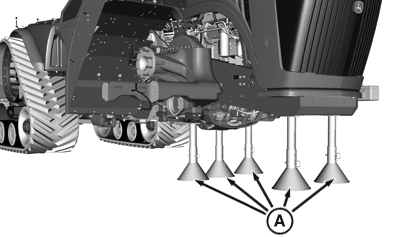

RXA0147880-UN-13APR15

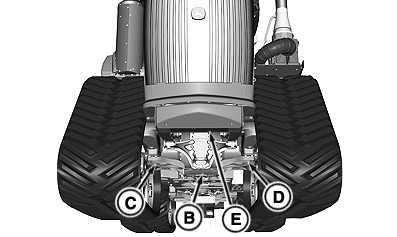

RXA0146325-UN-07NOV14

Jack up the Front End of Tractor

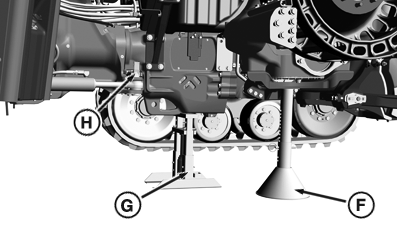

RXA0148086-UN-23APR15

A - JT07211 Support Stand Placement

B - Raise Center of Front Differential Housing.

C - Raise Right End of Front Differential, e.g. to Remove Right Front Track

D - Raise Left Side of Front Differential, e.g. to Remove Left Front Track

E - Raise Front End of Tractor under the Basic Weight

F - JT07211 Support Stands

G - JT05725 Universal Support Stand

H - DFRW254 Gudgeon Oscillation Stop Axle
