Selecting Drawbar Position

Drawbar must be positioned, as instructed in Attach PTO-Driven Implement in PTO, Hitch, and Drawbar section of this Operator’s Manual, for PTO-driven implement.

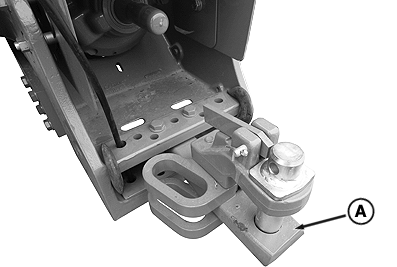

RXA0141864-UN-13JUN14

1. Loosen drawbar locking bolts.

2.

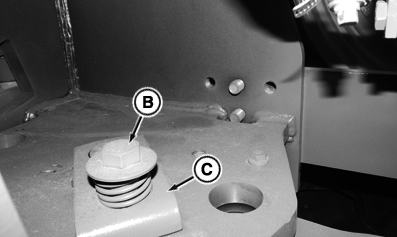

   RXA0160176-UN-10JUL17

   Remove front pivot pin retainer cap screws, washers, and spacers (B). Remove pivot pin retainer (C).

---




3. Slide drawbar to desired position.

4. Install pivot pin retainer, spacers, washers, and cap screws. Tighten cap screws to specification.

   Pin Retainer Cap Screws
   Cap Screw	Torque	435 N·m (322 lb·ft)

5. Install and tighten drawbar locking bolts to specification.

   Drawbar Locking Bolts
   Bolt	Torque	435 N·m (322 lb·ft)
