Adjusting Drawbar Side-to-Side

1.
   RXA0141865-UN-13JUN14

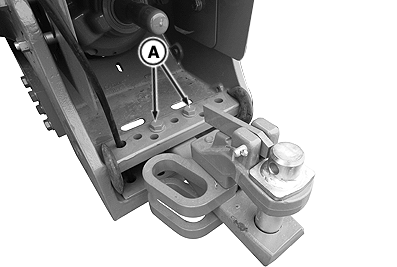

   Remove drawbar locking bolts (A).

---




2. Slide drawbar to desired position.

3. Install a locking bolt to specification against each side of drawbar.

   Drawbar Locking Bolts
   Bolt	Torque	435 N·m (322 lb·ft)
