PTO Engagement Rate

RXA0133713
RXA0133713-UN-16JUL13

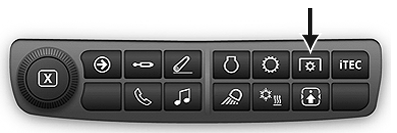

Navigation Bar PTO Shortcut Button

Use navigation bar PTO button or follow alternative path:

  1. RXA0148323
    RXA0148323-UN-05JUN15

    Select Menu button.
  2. Select Machine Settings tab.
  3. Select PTO button.
  4. Select Information and Settings icon.
  5. Select Settings tab.

RXA0130890
RXA0130890-UN-15FEB13

RXA0130891
RXA0130891-UN-15FEB13

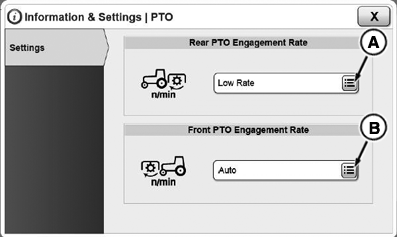

A - Rear PTO Engagement Rate Button

B - Front PTO Engagement Rate Button (If Equipped)

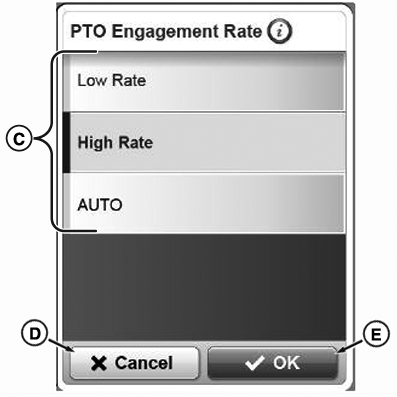

C - PTO Engagement Rate Settings

D - Cancel Button

E - OK Button

Operator can select from three different engagement rates for both front and rear PTO: AUTO, Low, and High.

AUTO: Used for most implements, and is factory setting in CommandCenter™. This setting provides software logic to determine engagement rate for PTO clutch, based on PTO speed sensor feedback. If PTO does not turn fast enough during initial PTO clutch engagement, engagement rate is automatically increased to avoid clutch slip and PTO shutdown.

Low: Can be used where gradual PTO start-up is required, or if Auto engagement is too aggressive or inconsistent.

High: Can be used for applications where PTO clutch engagement must be aggressive.

If problems with PTO clutch engagement occur in Auto setting and Under Speed Diagnostic Trouble Code is displayed, change PTO engagement setting in CommandCenter™ from Auto to High Rate to prevent power train damage.

Operating PTO with excessive load could damage PTO clutch and other components. When excessive load is detected, PTO automatically disengages. Wait 15 seconds before attempting to reengage PTO. If problem occurs during engagement, PTO speed may need to be decreased.
