PTO Engine Speed

RXA0153163-UN-04AUG16

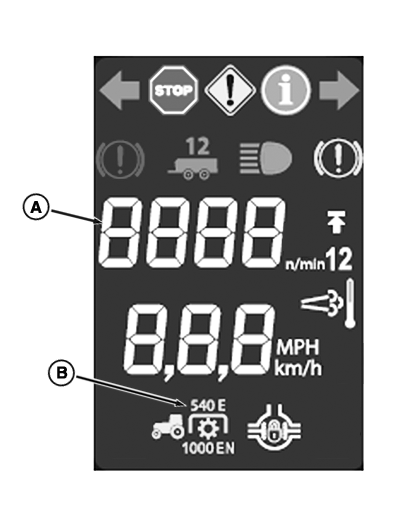

Corner Post Display

A - Tachometer

B - PTO Indicator

Correct engine speed is very important. Run engine at 1895 engine rpm for 1000 rpm PTO speed operation with 45 mm (1-3/4 in) 20 spline shaft.
