Sway Blocks

Prevent interference of draft links with tracks. Be sure that distance between tracks is at least 1168 mm (46 in) with equal distance from middle of tractor. If distance between tracks must be less than 1168 mm (46 in), sway is limited.

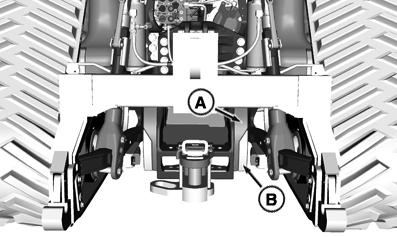

RXA0147843
RXA0147843-UN-29APR15

A - Tapered Side

B - Sway Blocks

Install sway blocks (B) with thick end toward frame, to minimize hitch movement.

Tighten attaching bolts to 230 N·m (170 lb·ft).

Move each sway block to opposite side of tractor to allow sway when hitch is lowered. Install sway blocks with tapered sides (A) outward from frame.
