Attach Implement to Quick Coupler

To avoid bodily injury or machine damage:

• Correctly attach implement.
• Put transmission in PARK position and check full range of hitch for interference, binding, or PTO separation whenever an implement is attached.
• Do not stand between tractor and implement.

1.
   RXA0147844-UN-29APR15

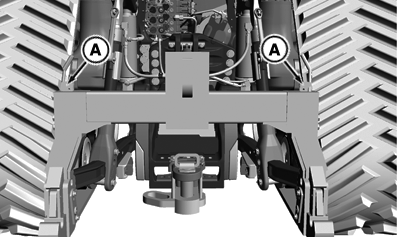

   Pull up on coupler latch handles (A).

---




2.
   RXA0158417-UN-28MAR17

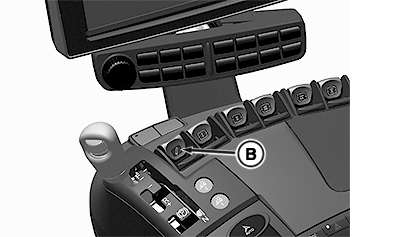

   Lower hitch control lever (B) until quick coupler hooks are lower than implement hitch pins.

---




3. Back up tractor to implement.

4. Raise hitch enough to engage implement pins in hooks.

5. Push coupler latch handles down to lock implement to quick coupler.

6. Connect hydraulic hoses and electrical connections.

7. Slowly pull hitch control lever to raise implement. Lower implement to ground and adjust upper height limit control if necessary.
