Adjust Implement Level

1. Adjust center link to level implement front-to-rear.

2.

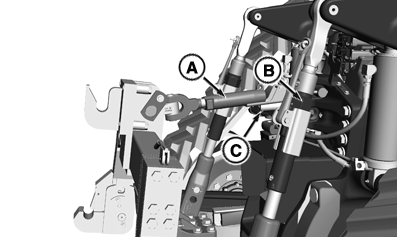

   RXA0147948-UN-29APR15

   Remove lock ring (C). Disengage handle (B) and rotate center portion (A) to lengthen or shorten center link.

   Center Link
   Adjustment	Length	747—868 mm (29.5—34.3 in)

---




3. Push handle down and install lock ring to hold center link in position. Measure between centers of attaching pins.

4.

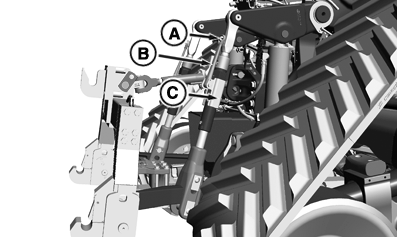

   RXA0147949-UN-29APR15

   Adjust either lift link to level implement side-to-side. Remove lock ring (A) to release lift link sleeve handle (B). Position sleeve on lift link hex to rotate center portion (C) with handle.

---




5. Measure between centers of lift link attaching pins.

   Lift Link
   Adjustment	Length	1030—1150 mm (40.5—45.3 in)
