CommandARM™ Joystick (If Equipped) - Layout and Joystick Lever Functions

The description of the joystick movements are made with the assumption that the hoses are connected so that extend is pulling the joystick back, retract is pushing the joystick forward. Moving the joystick to the left is extend and retract is to the right.

RXA0155031-UN-18OCT16

RXA0155032-UN-18OCT16

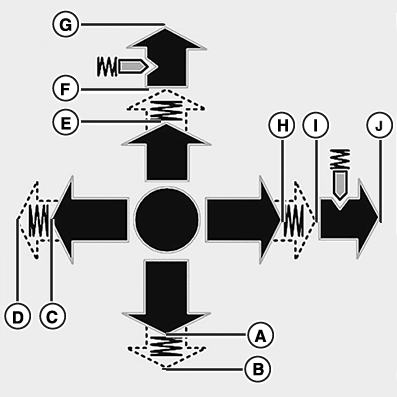

A	Pull joystick back to extend.
B	Pull joystick back beyond the point of detectable resistance to extend detent.
C	Move joystick to the left to extend.
D	Move joystick to the left beyond the point of detectable resistance to extend detent.
E	Push joystick forward to retract.
F	Push joystick forward beyond the point of detectable resistance to retract detent.
G	Push joystick all the way forward and engage in detent to activate the float position.
H	Move joystick to the right to retract.
l	Move joystick to the right beyond the point of detectable resistance to retract detent. Move the multi-function lever to the right twice in brief succession beyond the point of resistance and hold it there. This activates the bucket shake function.
J	Move joystick all the way to the right and engage in detent to activate the float position.

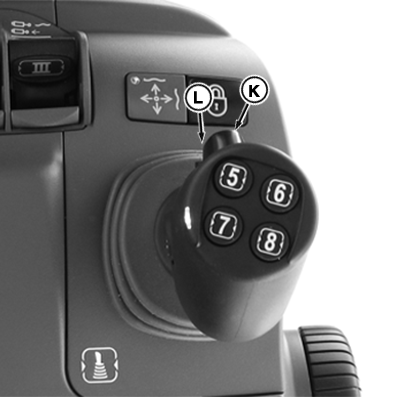

K	Move rocker switch up beyond the point of detectable resistance for extend detent.
L	Move rocker switch down beyond the point of detectable resistance for retract detent.

Operator can set any SCV on any axis or rocker switch of the joystick.

Some functions shown may not be available depending upon what options the tractor is equipped with.
