Accessory Electrical Outlet Use

RXA0159796-UN-13JUN17

RXA0141390-UN-02MAY14

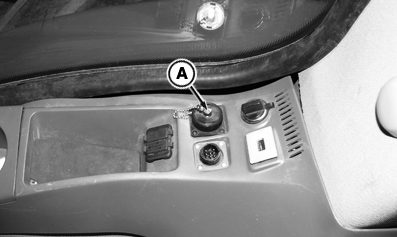

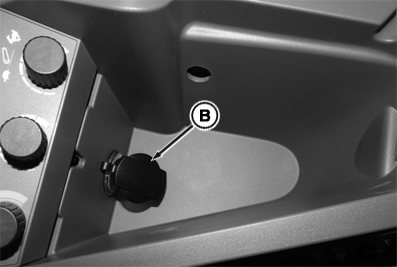

12 volt accessory outlets (A) located on right-hand console or outlet (B) in storage box are used when connecting auxiliary equipment.

RXA0141391-UN-02MAY14

Pin (D) provides battery power (hot), pin (C) provides (key) switched power and pin (E) provides ground. For additional information on connections, see appropriate auxiliary equipment installation instructions or your John Deere dealer.
