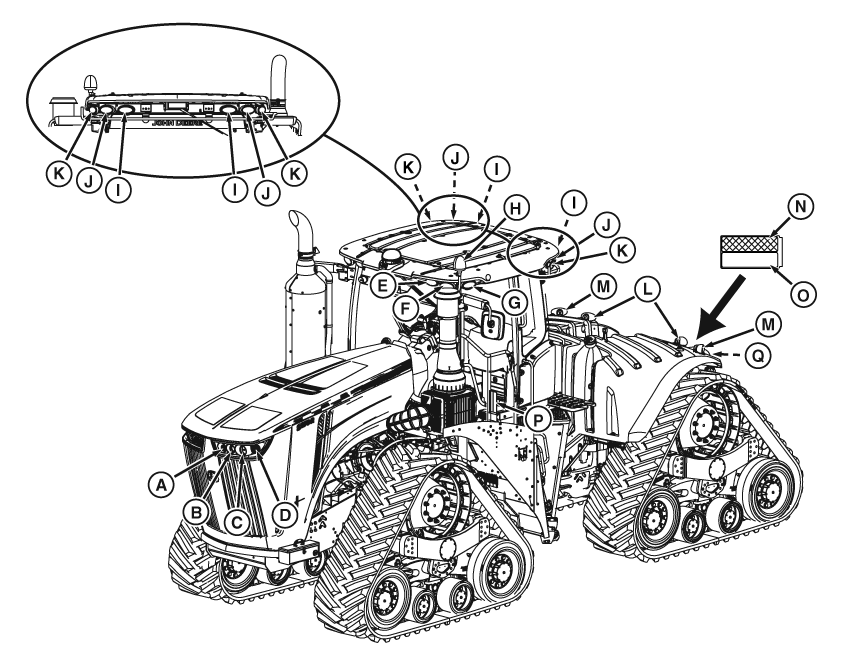

Light Identification

RXA0148155-UN-10JUN15

A - Inner Hood Lights

B - Road Lights (Low Beam)

C - Road Lights (High Beam)

D - Outer Hood Lights

E - Front Inner Roof Lights

F - Front Outer Roof Indicator Lights

G - Front Side Roof Lights

H - Rotary Beacon Lights (If Equipped)

I - Rear Inner Roof Lights

J - Rear Outer Roof Indicator Lights

K - Rear Side Roof Light

L - Rear Inner Fender Light

M - Rear Outer Fender Light

N - Amber Lens

O - Red Lens

P - Extremity Indicator Lights

Q - Rear Fender Tail/Brake/Indicator Lights

All lights are same on both sides of tractor, except rotary beacon (H) in Deluxe and Premium lighting packages and grill mounted center work lights (A) in Premium lighting package. In Premium lighting package, right grill mounted center work light is Halogen or LED (depending on option).
