Engine Brake — 15 L Engine (If Equipped)

Engine braking system assists vehicle’s service brakes in slowing down vehicle. Never use only engine brakes to stop vehicle.

Do not exceed governed engine speed when operating engine brakes. Engine damage can occur.

Tractors with 15 L engines may be equipped with an engine braking system. Engine brakes reduce tractor speed during transport by the use of engine compression, allowing for less wear on service brakes.

1.
   RXA0133711-UN-16JUL13

   Select Engine Shortcut button on Navigation Bar.

---




2.
   RXA0147944-UN-13APR15

   Select Advanced Setting icon.

---




3. Select Settings tab.

4.

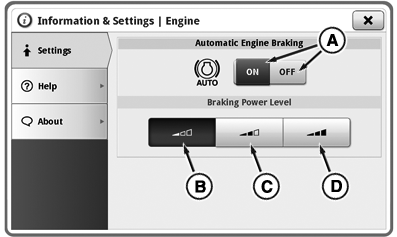

   RXA0148264-UN-27MAY15

   Engine Information & Settings Page (Early Version)

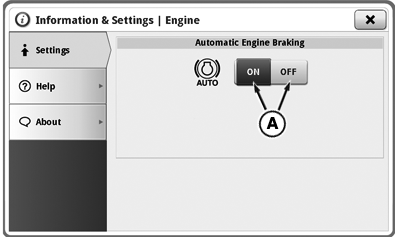

   RXA0149830-UN-28AUG15

   Engine Information & Settings Page (Late Version)

   Turn engine brake ON using ON/OFF toggle (A)

---

Use engine brake when traveling under load on level surfaces. Three user selectable braking power level settings can be used depending on load weight, speed and road conditions:

• Low (B): 33-percent engine braking power. Use when transporting light loads.
• Medium (C): 67-percent engine braking power. Use when transporting light/medium loads
• High (D): 100-percent engine braking power. Use when transporting heavy loads.
