Use Safety Chains
Avoid possible accident and injury by using a safety
chain on drawn equipment. Use a safety chain with a strength rating
equal to or greater than the gross weight of equipment. Provide only
enough slack in the chain to permit turning.
DO NOT use safety chain for towing or possible damage
to tractor, implement, and drawbar may result. Safety chain is provided
only for transport.

RXA0150482-UN-08DEC15

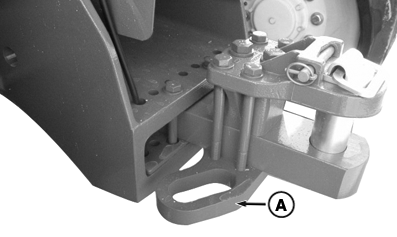

Route safety chain through loop (A) and attach to drawbar
support.
|
|
KT81203,0000259-19-20170727
|
|
