Power Display On and Off

Generation 4 CommandCenter™ display turns on and off with tractor key switch.

• Warm boot occurs when CommandCenter™ display has been run within last 24 hours. Display rests in hibernation state for that time. Display powers up quickly (approximately 10 seconds).
• Cold boot occurs if display is not operated for 24 hours or more, or if unswitched power has been disconnected. During this period, display shuts down completely to conserve battery power. Next power-up will take approximately 60 seconds. After turning off engine, avoid turning key switch back on until display screen has gone black.

• Hard reset is required when display is unresponsive for more than a few minutes under normal operating conditions.


  RXA0148512-UN-25JUN15

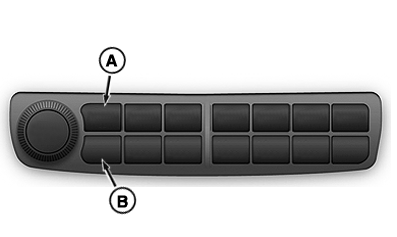

  Navigation Bar

  Perform hard rest by pressing left-most upper and lower buttons (A and B), of navigation bar, simultaneously for 5 seconds. If display does not reset, pull fuse 9 located in load center fuse panel and replace after 5 seconds. For more information on load center fuse panel, see Service - Electrical section of this Operator’s Manual. If problem persists, see your John Deere dealer.

---
