Install Video Display Camera

Avoid damaging camera by mounting camera securely to equipment and in location where camera will not be pinched, crushed, kicked, or knocked off.

RXA0107925
RXA0107925-UN-28MAY10

Video Connector Pin Identification

Camera placement is limited to video camera cable length. Consider camera field of view when selecting location.

Tractors equipped with 4100 processor will have one camera input connector and 4600 processor will have four camera input connectors.

  1. RXA0132177
    RXA0132177-UN-23APR13

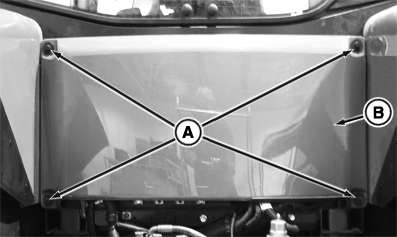

    Remove Rear Panel

    RXA0132178
    RXA0132178-UN-23APR13

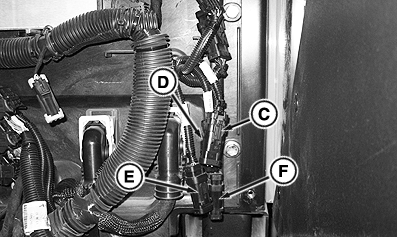

    Video Connectors Location (Equipped with 4600 Processor)

    Tractors are equipped with one or four, 4-pin video connector(s) to attach camera(s). Remove rear cab panel cap screws (A). Remove cab rear panel (B) to access each marked video camera connector(s) (C, D, E or F). Chart shows connector pin/function information.

    Pin Number

    Function

    1

    Power

    2

    Ground

    3

    Signal

    4

    Signal—Ground


  2. Connect camera cable into 4-pin connectors, route cable and mount camera at desired location.

  3. Install rear panel on cab and tighten screws.

  4. Proceed to Video Triggers in this section of this Operator’s Manual to select camera settings.
