Navigate to Video Application

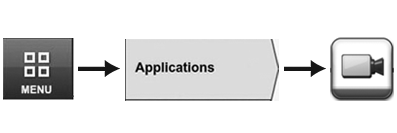

  1. RXA0144375
    RXA0144375-UN-06AUG14

    Select Menu.


  2. Select Applications tab.

  3. Select Video icon.

RXA0131114
RXA0131114-UN-03SEP13

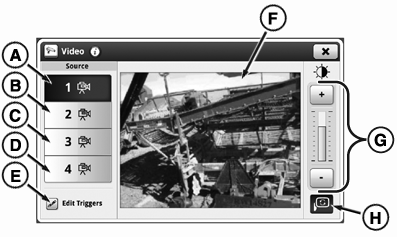

Video Applications Settings Page

A - Input 1 button

B - Input 2 button

C - Input 3 button

D - Input 4 button

E - Edit Triggers Button

F - Video Display Screen

G - Brightness Adjustment Bar

H - Mirror Image Button
