CommandCenter™ Pages Descriptions and Functions

iTEC™ Main Page

RXA0133714-UN-16JUL13

1.
   RXA0145566-UN-01OCT14

   Select Menu.

---

2. Select Machine Settings tab.

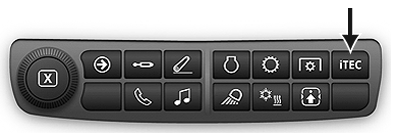

3. Select iTEC™ Icon.

•
  RXA0158043-UN-02MAR17

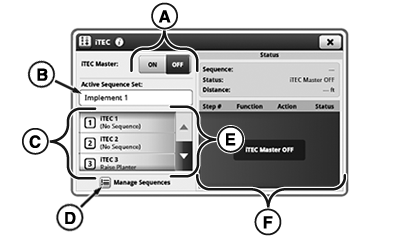

  A — iTEC™ Master Toggle: Toggle iTEC™ ON/OFF.

---

• B — Active Assignment Set Button: Select or create an assignment set.
• C — Assignments List: List of sequences assigned to iTEC™ buttons.
• D — Manage Sequences Button: Edit sequence and assign buttons.
• E — Scroll Bar: Scroll up or down.
• F — Status List: Shows status of each iTEC™ sequence step as sequence progresses.
