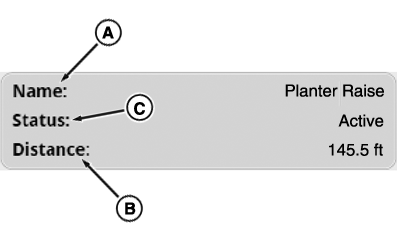

Status Area

  • RXA0131243
    RXA0131243-UN-08MAR13

    A—Name: Name of sequence that is currently running.
  • B—Distance: Displays accumulated distance while iTEC™ sequence is running.
  • C—Status: Indicator of current iTEC™ status.
    • Off - No sequence execution possible.
    • Ready - Waiting for iTEC™ button to which a sequence is assigned to be pressed.
    • Active - iTEC™ sequence execution active.
    • RPM Limit - Engine speed is out of range 1
    • Park - Transmission indicates that park lock is engaged 2
    • Operator Presence - No operator presence, no iTEC™ execution allowed. Operator returns to seat 3
    • Wheel Speed Low - Wheel speed < 0.5 km/h (0.3 MPH), execution is paused.
    • Complete - Sequence successfully completed.
    • Aborted - Sequence execution aborted by operator or active abort condition.
    • Error - One or more sequence steps did not execute.

iTEC is a trademark of Deere & Company
1 Sequences pauses or cannot start if this condition exists. Correct condition to resume sequence.
2 Sequence pauses or cannot start if this condition exists. Correct condition to resume sequence.
3 Sequences pauses or cannot start if this condition exists. Correct condition to resume sequence.

KT81203,00004D8-19-20161202
