Auxiliary Home Page

Navigate to Auxiliary home page. See Select Radio Source with Generation 4 CommandCenter™ in this section of this Operator’s Manual.

Connect external audio source to listen to stored music. See External Sources (Premium Radio) in this section of this Operator’s Manual.

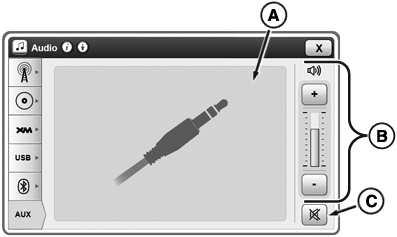

RXA0129971
RXA0129971-UN-07DEC12

A—Display Area: Displays image shown. Activity or information displays on external device only, not on CommandCenter™ display.

B—Volume Adjustment: Adjust volume.

C—Mute: Silence sound.

CommandCenter is a trademark of Deere & Company

KT81203,0000588-19-20170105
