Using Load-Sensing Hydraulic System—Power Beyond

RXA0138768-UN-27JAN14

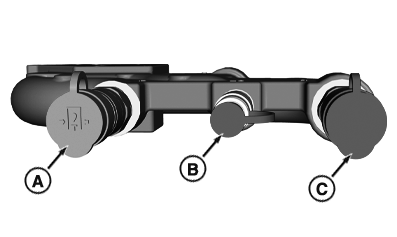

Power-Beyond Coupler

A - Pressure Coupler

B - Load Sense Coupler

C - Return Coupler (Motor Return)

Power-beyond is used as a pressure/flow source for auxiliary functions equipped with independent flow control valves. Use power-beyond when:

• Tractor SCV control is not needed
• No other SCV outlet is available

Power-Beyond functions require a "load-sense" signal to regulate pump pressure, therefore, a "load-sense" hydraulic line is used. Certain equipment can require modification. See your John Deere Dealer.
