Engine Oil Level—15 L Engine

Do not operate engine with oil level below cross-hatched area on dipstick.

Most reliable oil level is determined prior to starting engine, after tractor has been parked on level ground for several hours or overnight.

RXA0141821
RXA0141821-UN-02JUN14

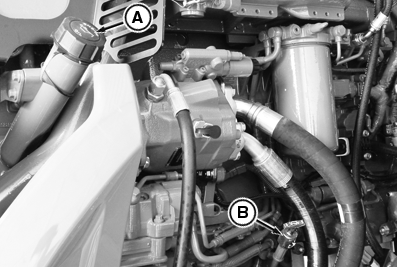

Dipstick is a different location (B) than fill tube.

RXA0141822
RXA0141822-UN-02JUN14

RXA0141823
RXA0141823-UN-02JUN14

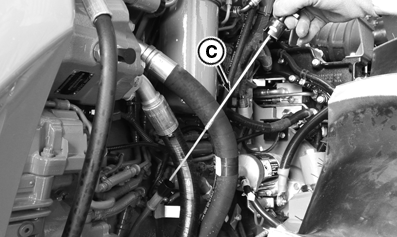

Remove dipstick (C) and check oil level with tractor on level ground before starting tractor. Oil level anywhere within cross-hatched area on dipstick (D) is considered FULL. If oil is below cross-hatched area on dipstick, add oil.

If oil is required, remove fill cap (A) and add oil in to fill tube. See Diesel Engine Oil in Engine Oil section of this Operator’s Manual.

Place dipstick back in and tighten fill cap securely.

RD47322,000033E-19-20170718
