Disconnecting Hydraulic Hoses—Rear of Tractor

1. Lower implement to ground before disconnecting hydraulic hoses.

2. Relieve hydraulic pressure in hoses by moving SCV control lever or joystick (If Equipped) to float position for a few seconds while engine is running.

   Prevent possible personal injury. Lock out SCV controls before detaching implements to prevent implement movement.

3. Lock out SCV controls:

   •

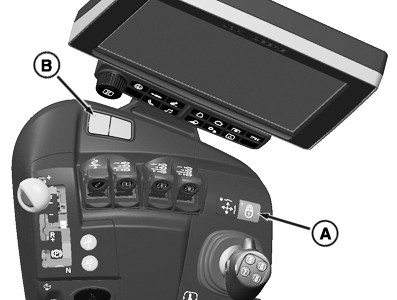

     RXA0138808-UN-28JAN14

     Joystick — Press Joystick lock (A).

   ---

   • CommandARM™ SCV — Press SCV control lever lock (B).



---




4.

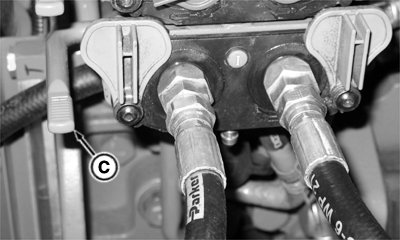

   RXA0160002-UN-26JUN17

   Push SCV hose release lever (C) down slightly to relieve any pressure buildup of trapped oil before removing hoses.

---




5. Forcing or jerking SCV hoses when disconnecting can damage hose ends and SCV couplers. If hoses cannot be removed easily, relieve pressure in hydraulic system by moving SCV lever to float position for a few seconds with engine running and using lever to extract hoses.

   Pull hoses straight out from couplers.

6. Clean coupler area before closing dust cover.

7. Rotate dust covers down to cover couplers.
