CommandARM™ Joystick (If Equipped)

Joystick is compatible on tractors with up to 6 SCVs.

Operating SCVs With Joystick

  • RXA0133735
    RXA0133735-UN-17JUL13

    The Control Setup Icon appears around controls that may be setup to control other functions. Review the Controls Setup page to verify the function of each control.

  • RXA0133920
    RXA0133920-UN-11NOV13

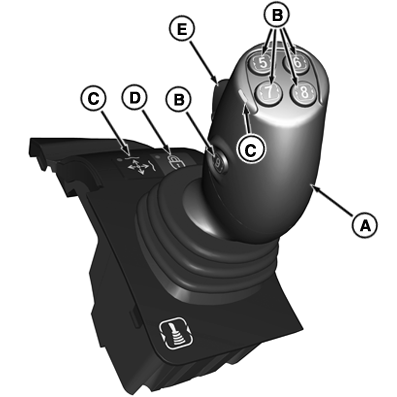

    The axes of the joystick (A) operates combinations of programmed rear SCV(s) functions.
  • Operator can select transmission gear upshifts using (button 5) (B) and downshifts (button 7) (B) located on top of the lever.
  • Joystick activation indicator light (C) is ON when joystick is active.
  • Joystick lock (D) is used to lock out electro-hydraulic functions for SCV(s) assigned to Jjoystick.
  • Rocker switch (E) operates combinations of programmed SCV(s) functions.
  • Push the joystick all the way forward and engage in detent to activate the float position. The joystick lever remains in the detent until it is pulled back.
