Set Start Gears

Two forward start gears and one reverse gear can be set.

RXA0133712-UN-16JUL13

1.
   RXA0130326-UN-11JAN13

   Press Advanced Settings icon.

---




2. Press Settings tab.

3. Select desired Start Gear to set.

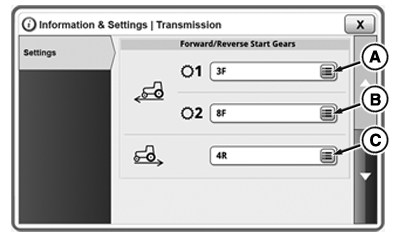

   RXA0143042-UN-01JUL14

   Press Forward Start Gear 1 (A), or 2 (B) or Reverse Start Gear (C) button. List of available gears appear.

---




4.

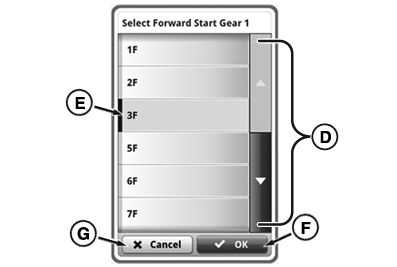

   RXA0143039-UN-01JUL14

   Scroll through list of gears (D).

---




5. Select desired gear (E) and press OK button (F) to finish selection or (G) to cancel.

Select Forward Start Gear 2

1.

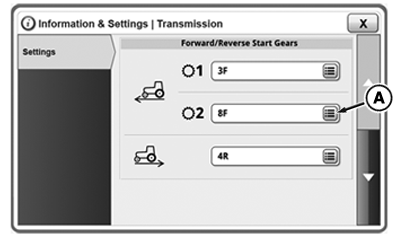

   RXA0143043-UN-01JUL14

   Press Forward Start Gear 2 button (A). List of forward gears appears.

---




2. Scroll through list of gears (B).

3.

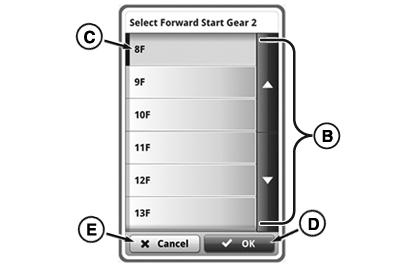

   RXA0143040-UN-01JUL14

   Select desired gear (C) and press OK button (D) to finish selection or (E) to cancel.

---

Select Reverse Start Gear

1.

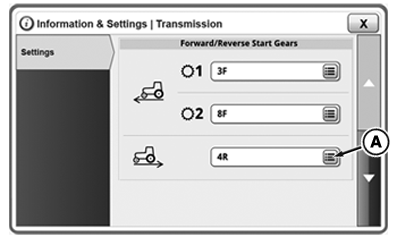

   RXA0143044-UN-01JUL14

   Press Reverse Start Gear 2 button (A). List of forward gears appears.

---




2.

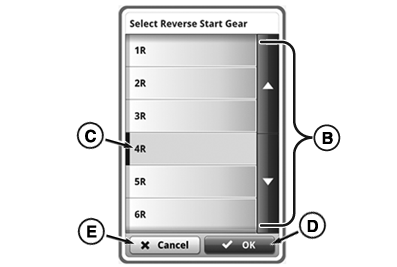

   RXA0143041-UN-01JUL14

   Scroll through list of gears (B).

---




3. Select desired gear (C) and press OK button (D) to finish selection or (E) to cancel.
