Efficiency Manager™ on the e18™ Transmission

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0153161-UN-04AUG16

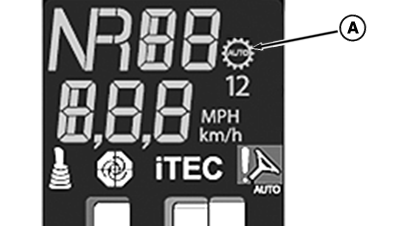

Efficiency Manager™ Icon on Corner Post Display

RXA0158414-UN-28MAR17

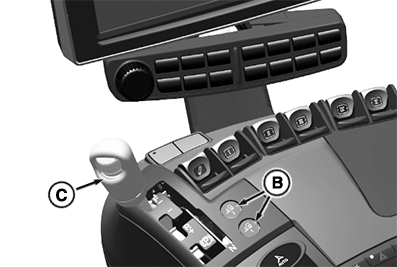

Efficiency Manager™ 1 and 2 Switch

A - Efficiency Manager™ Icon

B - Efficiency Manager™ Buttons

C - Set Speed Adjusting Wheel

• Efficiency Manager™ is not to be used during scraper loading.
• Efficiency Manager™ allows for three shift modes Full Auto, Custom, and Manual.

Enabling Efficiency Manager™

• Efficiency Manager™, is automatically enabled in Full Auto Mode and Custom Mode.
• To enable Efficiency Manager™ in Manual Mode, select Efficiency Manager™ button 1 or 2 (B) on CommandARM™.

When using Efficiency Manager™ Transmission

• Efficiency Manager™ indicator lights up on the corner post display (A).
• Set throttle to full engine rpm. Tractor reaches set speed only if engine throttle is set to full rpm.
• Efficiency Manager™ commands up or down shifts and engine rpm to maintain track speed.
• When in Full Auto Mode and Custom Mode, shifting with bump lever automatically changes set speed to next closest available standard set speed.
• Shift decision is based on load conditions, throttle command, and operator settings.
• Target speed is adjusted using set speed adjuster (C) on shift lever.
• If engine speed falls too low levels, transmission shifts into neutral to prevent engine stall.
• Depressing clutch pedal suspends Efficiency Manager™ but not Efficiency Manager™ function. Efficiency Manager™ resumes in Start gear or lower, when clutch pedal is released. To adjust Start gear see Setting Start Gear in this section of Owner’s Manual.

When disabling Efficiency Manager™, tractor rpm changes to match throttle position, possibly resulting in tractor acceleration.

Disabling Efficiency Manager™ Transmission

Efficiency Manager™ can be disabled only in Manual Mode, and is engaged when an Efficiency Manager™ button (B) is selected again.

Efficiency Manager™ set speeds can be programmed into iTEC™, but not Efficiency Manager™ on and off.
