High Flow Hydraulic Component Identification

SCVs I-III are supplied by primary pump, SCVs IV-VI (If equipped) are supplied by secondary pump. SCVs IV-VI are recommended for orbital motor use.

RXA0148178-UN-11MAY15

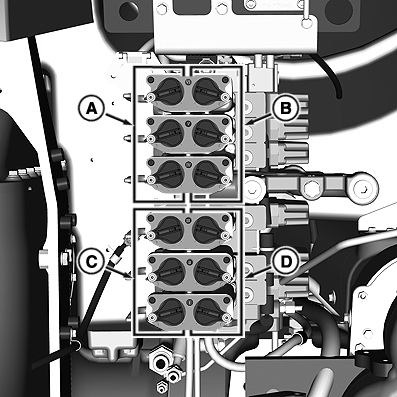

High Flow SCV Couplers Shown

A - Extend Couplers 85cc Pump

B - Retract Couplers 85cc Pump

C - Extend Couplers 90cc Pump

D - Retract Couplers 90cc Pump
