Standard Hydraulic Component Identification

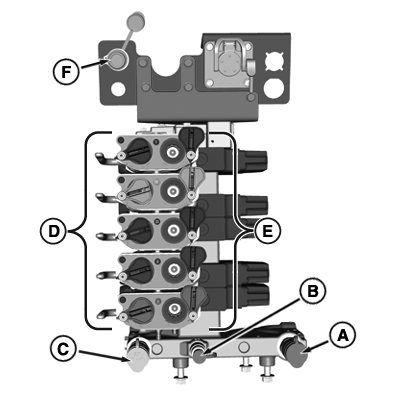

RXA0161210-UN-26OCT17

Models 9420RX and 9470RX

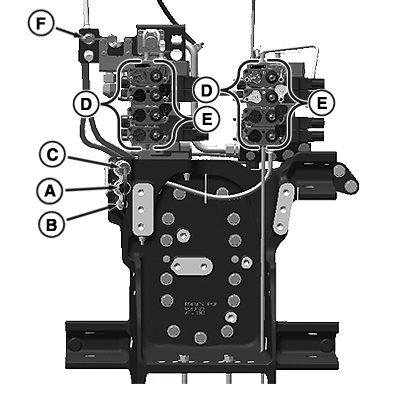

RXA0161211-UN-26OCT17

Models 9520RX, 9570RX, and 9620RX

A - Return Coupler (Motor Return)

B - Load Sense Coupler

C - Pressure Coupler

D - Extend Couplers

E - Retract Couplers

F - Sump Coupler (Motor Case Drain)

The seventh and eighth SCVs are only available as field installation kits.
