Using TouchSet™ Depth Controls

Avoid personal injury or death. Do not attempt to install depth control sensors on implements not intended for this system. See implement operator's manual.

Moving implement control unit, sensor, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valve (SCV I) is used to electronically control raising, lowering, and setting of implement depth, without leaving cab.

  1. Connect implement to tractor.

  2. RXA0133709
    RXA0133709-UN-16JUL13

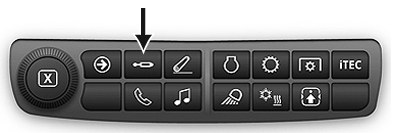

    Press SCV shortcut button on Navigation Bar or follow alternative path.


  3. RXA0127933
    RXA0127933-UN-04SEP12

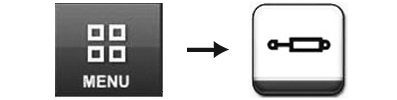

    Select Menu.


  4. Select SCV Icon.

    When using TouchSet™, SCV must be set for feature mode. See Hydraulics and Selective Control Valves Section 60.

    RXA0147528
    RXA0147528-UN-05MAR15

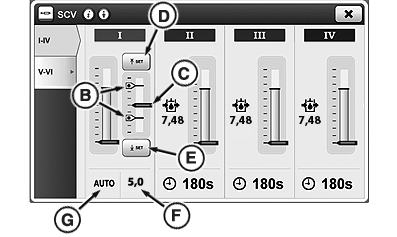

    SCV Main Page

    Height setting is upper setpoint implement range (B). Lower limit (depth setting) is bottom portion of implement range. Actual implement position is depicted by indicator (C).

    RXA0158420
    RXA0158420-UN-28MAR17

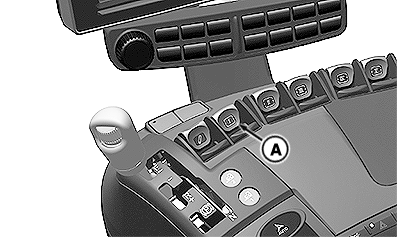

    Moving SCV 1 lever (A) into extend or retract detent position with TouchSet™ in AUTO (G) will command implements's position to established set point.

    Rapidly moving SCV I lever into extend or retract region and returning to center position with TouchSet™ in AUTO will adjust implement's position up or down by a fixed amount. Repeated lever ”flick” movements will be summed.


  5. Using SCV I lever, lower implement to desired depth while watching implement and CommandCenter™ Implement Position (F).

  6. When implement is at desired depth, press button (E).

  7. Using SCV I lever, raise implement to desired height while watching implement and CommandCenter™ Implement Range (B).

  8. When implement is at desired height, press button (D).


TouchSet™ Continued - Setting Flow

  1. RXA0147529
    RXA0147529-UN-05MAR15

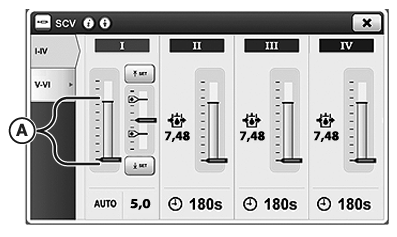

    Touch bar graph (A) on main SCV Screen to bring up flow tab overlay. Increase flow by pushing button (B) or to decrease flow push buttons (C) to set desired flow.

    RXA0136282
    RXA0136282-UN-23OCT13

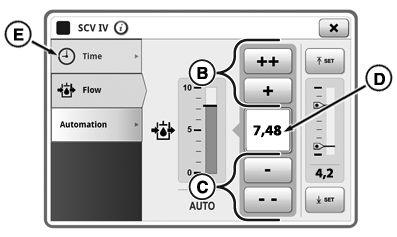

    Flow Tab

    Bar graph (A) depicts detent flow and amount of detent flow will be shown in input box (D). Detent time drop down box (E) cannot be adjusted when Automation Mode (F) is enabled. See Configuring Selective Control Valves - Standard Mode in Hydraulics and Selective Control Valves Section 60.

    Flow is displayed in increments of 0.04 beginning at 0.04 through 10 located in input box. Pushing (+) will increase flow by 0.04, pushing (++) increases flow by 1.00, and by pushing (-) and (- -) will decrease flow setting by same increments.


  2. RXA0131882
    RXA0131882-UN-26AUG13

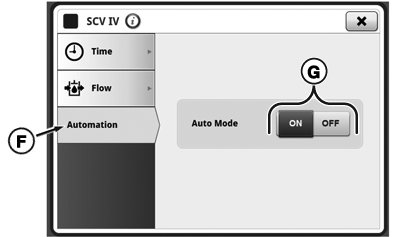

    Press Automation tab (F) then ON or OFF toggle button (G), to activate the Automation feature.

RD47322,00006D0-19-20170801
