Engine Crankcase Breather Filter Element—15 L Engine

1. Open hood.

2.

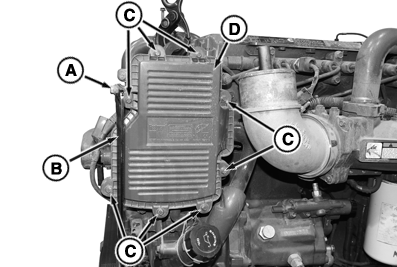

   RXA0142546-UN-16JUN14

   Remove cap screw (A) and finger guard (B).

---




3. Remove eight cap screws (C) and remove cover (D).

4.

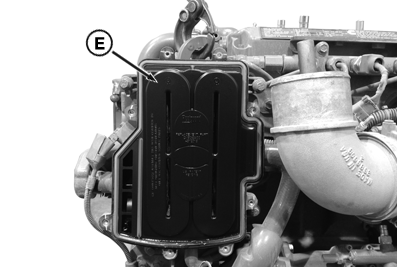

   RXA0142547-UN-17JUN14

   Replace and install new filter (E).

---




5. Replace cover and tighten cap screws to specification.

   Filter Cover Cap Screws	Torque	5 N·m (45 lb·in)

6. Reinstall bracket and cap screw. Tighten to specification.

   Finger Guard Cap Screw	Torque	73 N·m (54 lb·ft)

7. Close hood.
