Engine Oil Level—13.5 L Engine

Do not operate engine with oil level below cross-hatched area on dipstick.

Most reliable oil level is determined prior to starting engine, after tractor has been parked on level ground for several hours or overnight.

RXA0141917
RXA0141917-UN-02JUN14

13.5 L Engine

RXA0141918
RXA0141918-UN-02JUN14

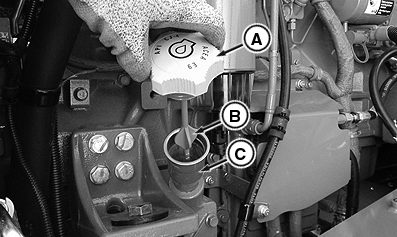

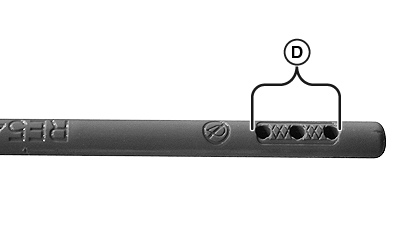

Prior to starting tractor, remove fill cap (A) and check oil level on dipstick (B) with tractor on level ground. Oil level anywhere within cross-hatched area (D) on dipstick is considered FULL. If oil is below cross-hatched area on dipstick, add oil.

If oil is required, remove fill cap and add oil through fill tube (C). See Diesel Engine Oil in Engine Oil section of this Operator’s Manual.

Tighten fill cap securely.
