Steering Pins

Place tractor in PARK and remove key before working in hinge area.

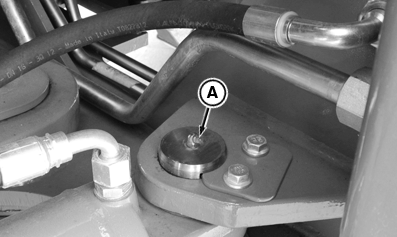

RXA0141971
RXA0141971-UN-02JUN14

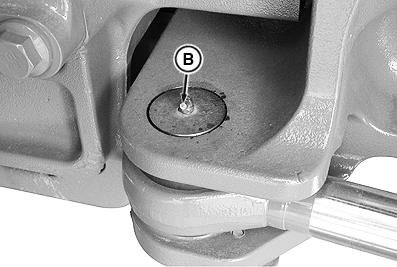

RXA0141972
RXA0141972-UN-02JUN14

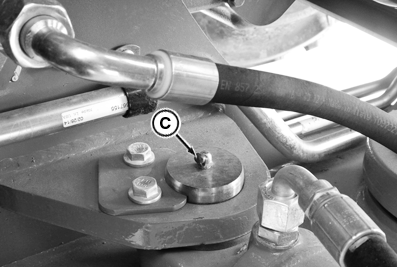

RXA0141973
RXA0141973-UN-02JUN14

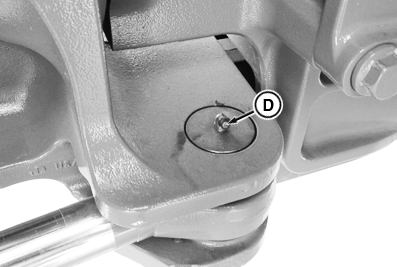

RXA0141974
RXA0141974-UN-02JUN14

Lubricate right-hand front (A) and rear (B), left-hand front (C) and rear (D) steering pin bushings.

Use John Deere SD Polyurea grease or other grease as specified in Grease in Other Lubricants section of this Operator’s Manual.

RX32825,000063A-19-20170713
