NEUTRAL Start System

Avoid personal injury. Make sure that everyone is clear of tractor.

  1. Park tractor on level ground.

  2. Fully depress clutch and brake pedals.

  3. Shut off tractor.

  4. RXA0158486
    RXA0158486-UN-28MAR17

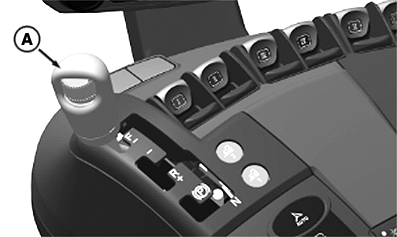

    Move gear shift lever (A) from PARK position to a forward gear.


  5. If tractor fails this test, contact your John Deere dealer immediately.

    Attempt to start engine. If engine starts in any lever position other than NEUTRAL or PARK, repair system immediately. See your John Deere dealer.

  6. Repeat step 5 with transmission in a reverse gear.

RX32825,000063C-19-20170718
