Transmission PARK System

Avoid personal injury. Make sure that everyone is clear of tractor.

  1. Position tractor on a 20 % incline (0.6 m (2 ft) vertically for every 3.0 m (10 ft) horizontally) with front of tractor facing downward.

  2. RXA0140499
    RXA0140499-UN-16APR14

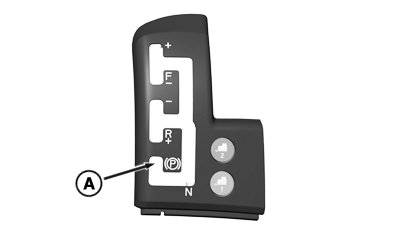

    Right-Hand Reverser Lever PARK Position

    Move transmission shift lever (A) into PARK position.


  3. If tractor fails this test, contact your John Deere™ dealer immediately.

    If tractor does not hold on incline in PARK position, repair transmission PARK system immediately, see your John Deere dealer.

RX32825,000063D-19-20170718
