Telescoping Drive Shaft

RXA0149743
RXA0149743-UN-24AUG15

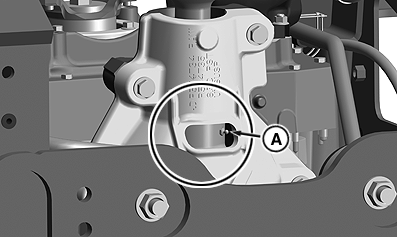

Transmission to Front Axle Drive Shaft (View From Under Tractor)

Lubricate telescoping transmission to front axle drive shaft lubrication fitting (A).

Use John Deere SD Polyurea grease or other grease as specified in Grease in Other Lubricants section of this Operator’s Manual.

RXA0158395
RXA0158395-UN-20MAR17

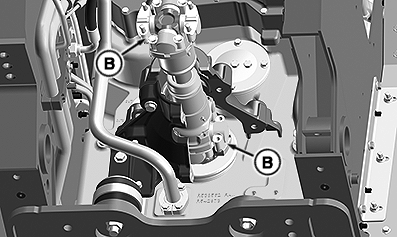

Inspect universal joints (B) for discoloration and looseness. If problem is detected, see your John Deere dealer.

RX32825,000063F-19-20170822
