Transmission-Hydraulic Vent Filter

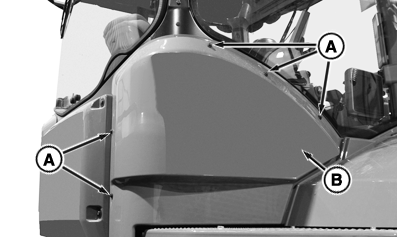

  1. RXA0142029
    RXA0142029-UN-03JUN14

    Remove right-hand rear cab panel retaining cap screws (A) and remove cab panel (B).

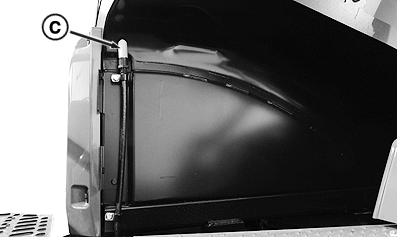

  2. RXA0142030
    RXA0142030-UN-03JUN14

    Release retaining hose clamps to remove vent filter (C) from hose.


  3. Install new filter onto hose and secure with retaining hose clamps.

  4. Do not over tighten retaining screws. Overtightening may result in damage to cab panels.

    Reinstall cab panel and tighten retaining cap screws.

RX32825,0000653-19-20171020
